Updated Reliability Every SWM ORV features a high-yield strength alloy steel frame, delivering superior reliability for harsh application scenarios.
Dominant Engine The Trailhunter 550 features a powerful 650cc gas engine with EFI, delivering 46hp max power—matching a 499cc engine's output. It offers better fuel efficiency, smoother power delivery, lower emissions, and an enhanced driving experience, thanks to precise EFI control.
Optimized Driving Comfort All SWM ORVs come with innovative and reliable suspension design with 20% higher travel than rivals in their class. This design enhances driving comfort and superior off-road performance.
Enhanced Storage Capability The built -in front and rear sunken storage box is spacious for your gear and essentials.
More Deluxe Options Capable Elevate your driving experience with our ATV's premium intelligent features: Tri-mode EPS, Engine breaking system, Intelligent throttle control, Eco / Std / Sport modes, Active descent control, Anti-theft system. These advaced features ensure a smoother and more enjoyable ride.
SUITES & SPECS

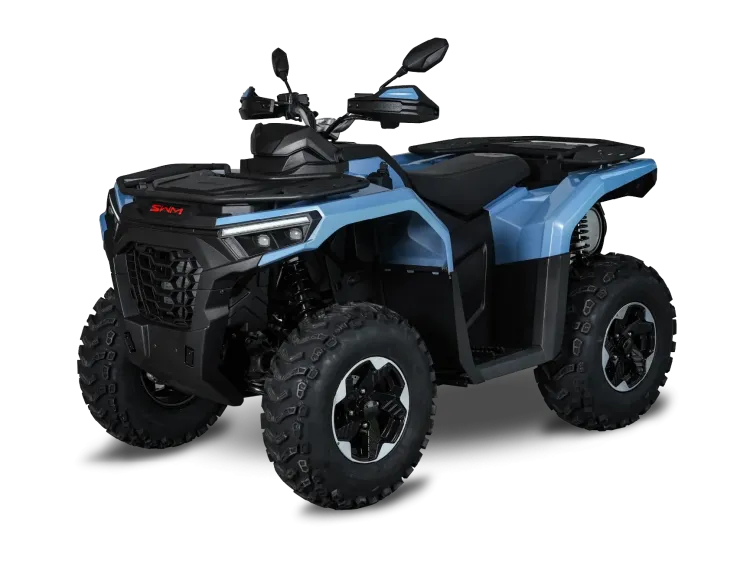

TRAILHUNTER 550
TRAILHUNTER 550
  • Mechanical throttle
  • 25 in. tires, 12 in. steel wheels

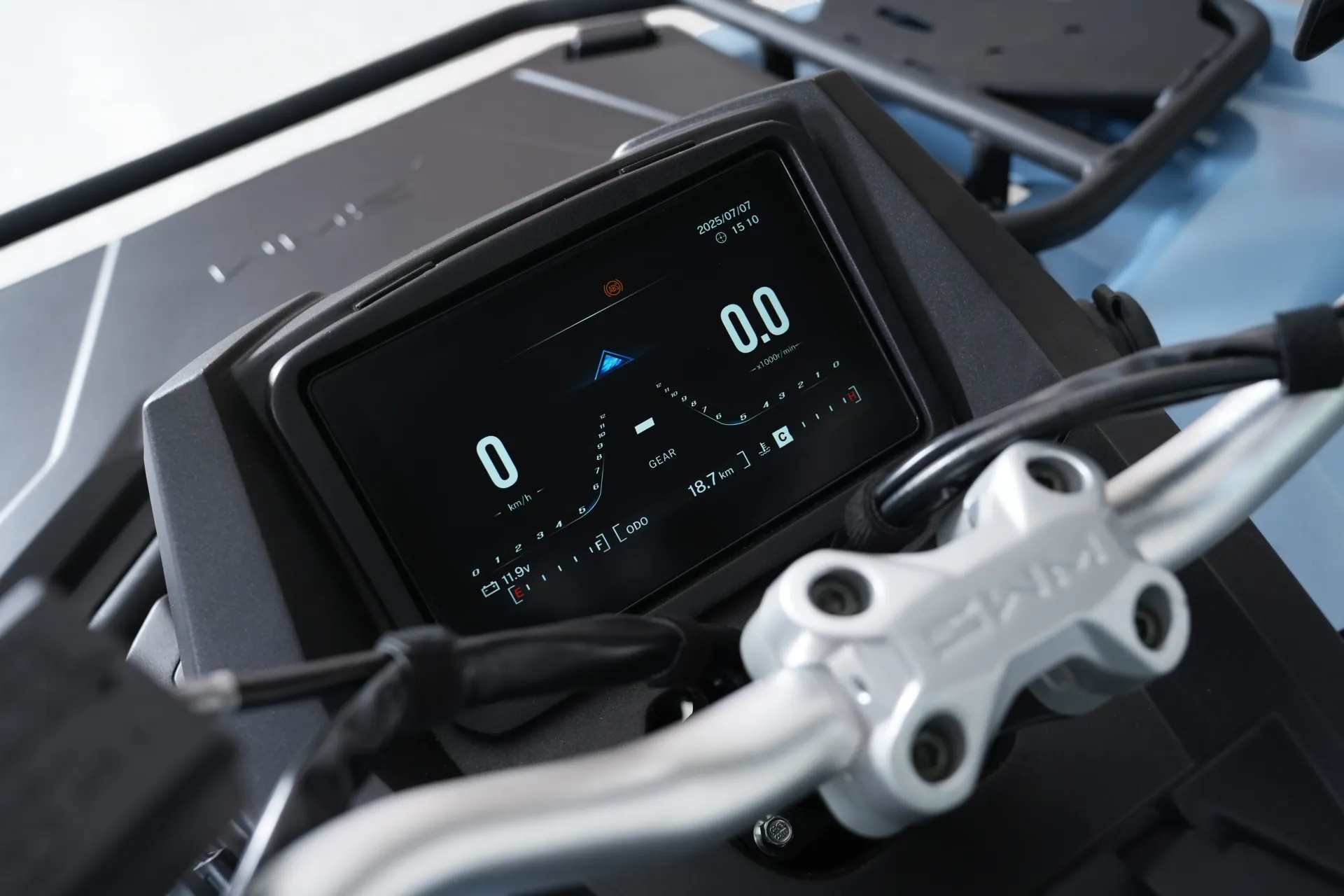

  • 5 in. digital display/ power outlet
  • Oil shock absorber
  • Changxing Clutch
  • Base-grade front bumper
  • BCM (Body control module) system
  • Intelligent In-Vehicle Infotainment System
COMPARE

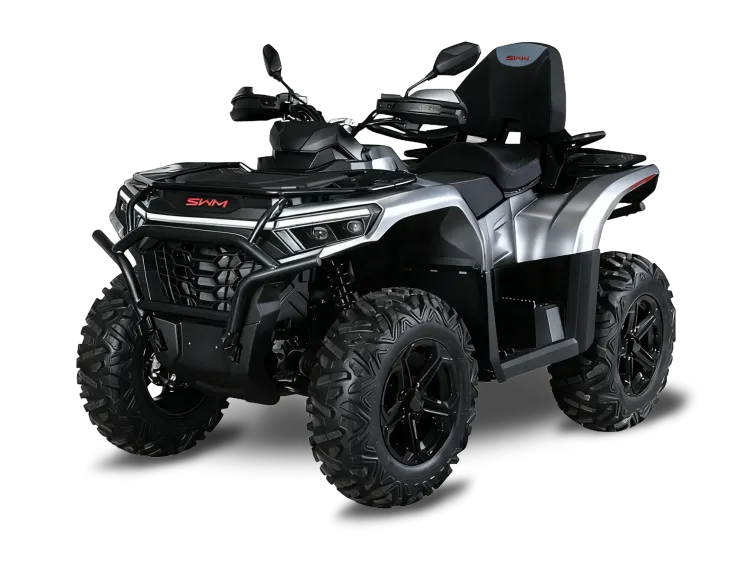

TRAILHUNTER TOURING 550
TRAILHUNTER TOURING 550
  • Mechanical throttle
  • 25 in. tires, 12 in. steel wheels
  • 5 in. digital display/ power outlet
  • Oil shock absorber
  • Changxing Clutch
  • Base-grade front bumper
  • BCM (Body control module) system
  • Intelligent In-Vehicle Infotainment System
COMPARE
TRAILHUNTER 550 PRO
TRAILHUNTER 550 PRO
  • Triple-mode Electronic Power Steering (EPS)
  • 2500 lbs. (1131 kg) winch
  • Handguard
  • Mid-grade front bumper
  • Rear hitch ball
COMPARE
TRAILHUNTER TOURING 550 PRO
TRAILHUNTER TOURING 550 PRO
  • Triple-mode Electronic Power Steering (EPS)
  • 2500 lbs. (1131 kg) winch
  • Handguard
  • Mid-grade front bumper
  • Rear hitch ball
COMPARE
TRAILHUNTER 550
Overview ENGINE & TRANSMISSION CHASSIS & HANDLING DIMENSIONS & CAPABILITIES FEATURES WARRANTY
X TRAILHUNTER 550
Overview ENGINE & TRANSMISSION CHASSIS & HANDLING DIMENSIONS & CAPABILITIES FEATURES WARRANTY

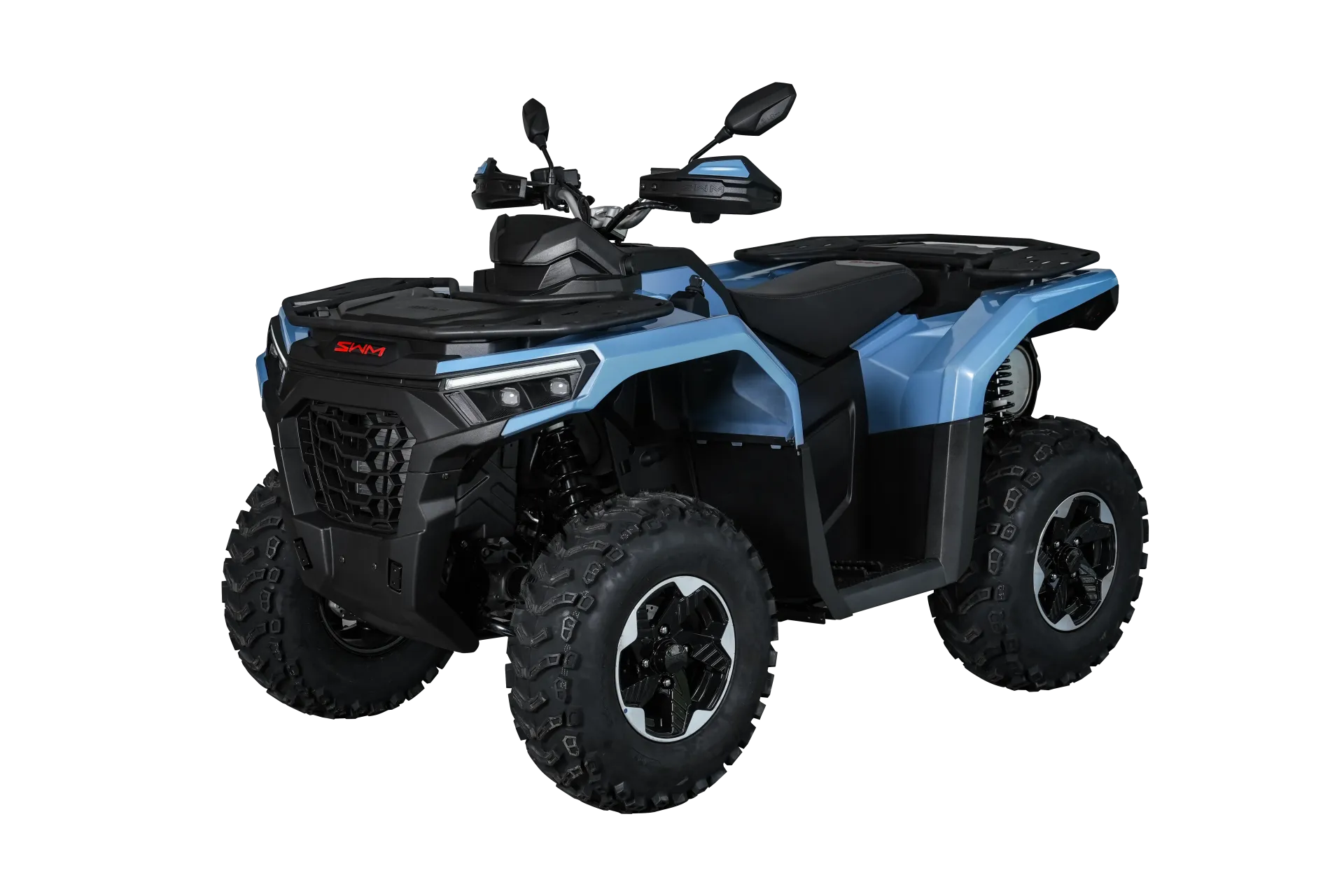

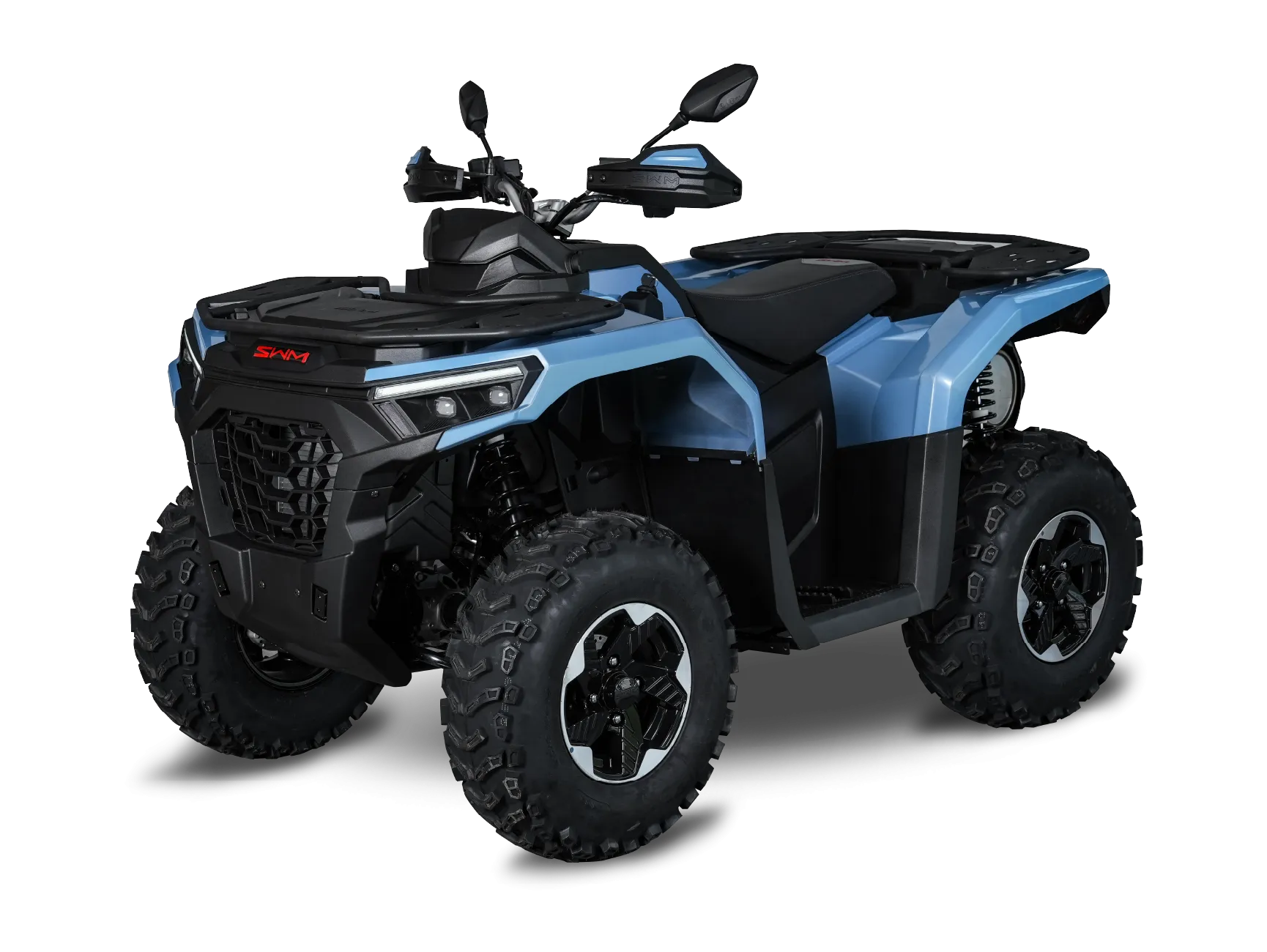

TRAILHUNTER 550
TRAILHUNTER 550 VIEW DETAILED PARAMETER CONFIGURATION
  • 650 cc, single cylinder,
    DOHC, liquid cooled
  • Ground Clearance
    280 mm
  • Passenger Allowed
    Option: 1-Seat
  • Selectable 2WD/4WD
    with front differential lock
  • DOWNLOAD SPEC SHEET
Type single cylinder, DOHC, liquid cooled
Displacement 650 cc
Max Power / Torque 46 HP / 50 N·m
Fuel Supply BOSCH EFI
Transmission Changxing CVT L / H / N / R / P
Drivetrain Selectable 2WD/4WD with front differential lock
Front Suspension Double A-arm 9.45 in. (240 mm) travel
Rear Suspension Double A-arm 9.84 in. (250 mm) travel
Shock Absorber oil shock absorber
Front Tires 25 x 8 x 12 in.
Rear Tires 25 x 10 x 12 in.
Wheels 12 in. Steel
Brake Front: Dual 200 mm disc brakes with hydraulic twin-piston calipers/ Rear: Dual 200 mm disc brakes with hydraulic twin-piston calipers
L x W x H 84.4 x 47.2 x 57.2 in. (2143 x 1200 x 1454 mm)
Wheel Base 51.9 in. (1320 mm)
Ground Clearance 11 in. (280 mm)
Estimated Dry Weight* 881 lb (400 kg)
Payload Capacity 280 kg
Rack Capacity Front:110 lb (50 kg) / Rear: 220 lb (100 kg)
Towing Capacity 1,786 lb (810 kg)
Fuel Capacity 23 L
Seat Height 37.4 in. (950 mm)
Gauge 5 in. digital display
Power Steering N/A
Lighting LED headlights and taillights
Winch N/A
Seat 1 Standard
Protection N/A
Manufacturer Limited Warranty 2- Year Limited Factory Warranty
TRAILHUNTER TOURING 550
Overview ENGINE & TRANSMISSION CHASSIS & HANDLING DIMENSIONS & CAPABILITIES FEATURES WARRANTY
X TRAILHUNTER TOURING 550
Overview ENGINE & TRANSMISSION CHASSIS & HANDLING DIMENSIONS & CAPABILITIES FEATURES WARRANTY

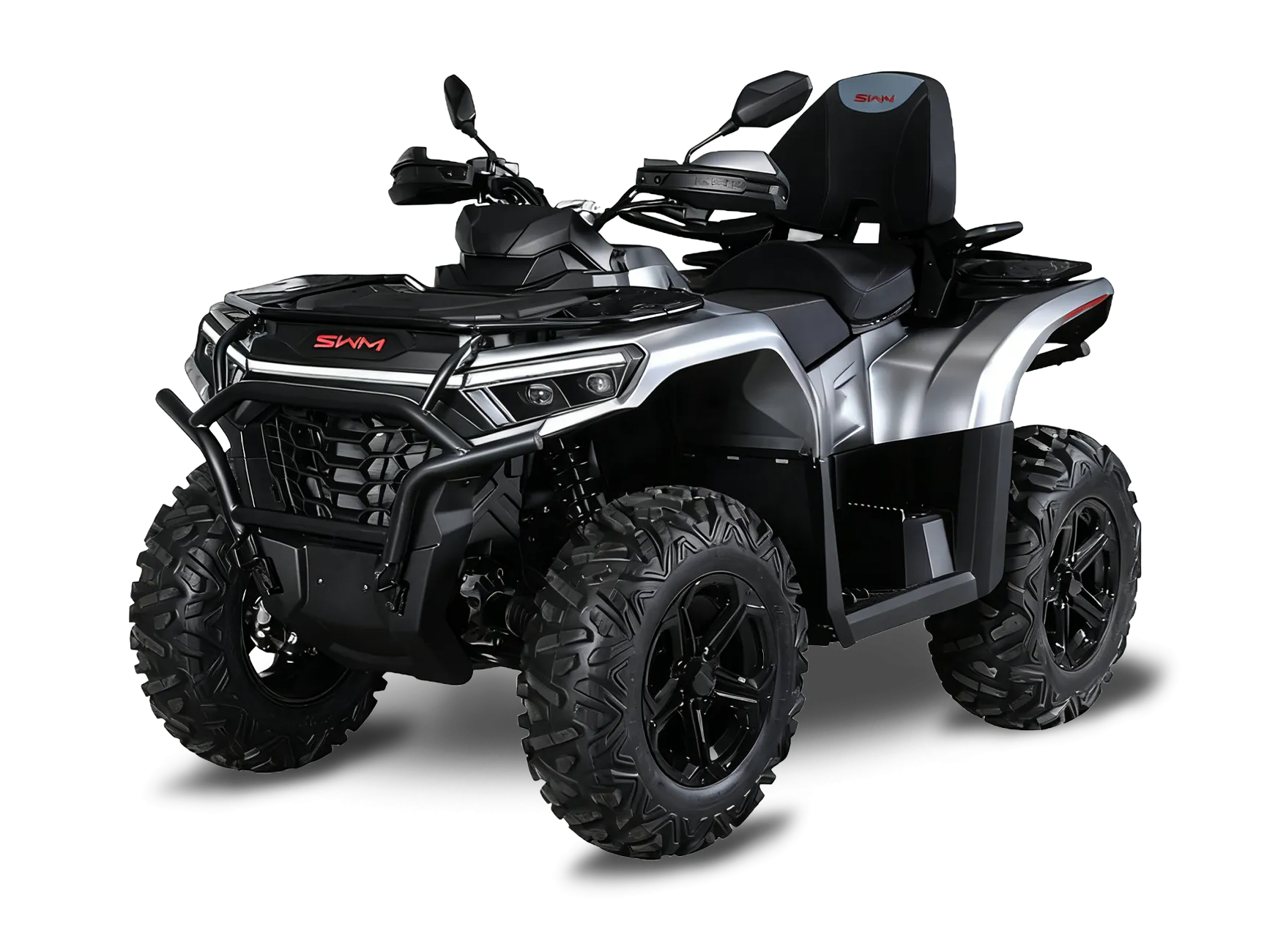

TRAILHUNTER TOURING 550
TRAILHUNTER TOURING 550 VIEW DETAILED PARAMETER CONFIGURATION
  • 650 cc, single cylinder,
    DOHC, liquid cooled
  • Ground Clearance
    280 mm
  • Passenger Allowed
    Option: 2-Seat
  • Selectable 2WD/4WD
    with front differential lock
  • DOWNLOAD SPEC SHEET
Type single cylinder, DOHC, liquid cooled
Displacement 650 cc
Max Power / Torque 46 HP / 50 N·m
Fuel Supply BOSCH EFI
Transmission Changxing CVT L / H / N / R / P
Drivetrain Selectable 2WD/4WD with front differential lock
Front Suspension Double A-arm 9.45 in. (240 mm) travel
Rear Suspension Double A-arm 9.84 in. (250 mm) travel
Shock Absorber oil shock absorber
Front Tires 25 x 8 x 12 in.
Rear Tires 25 x 10 x 12 in.
Wheels 12 in. Steel
Brake Front: Dual 200 mm disc brakes with hydraulic twin-piston calipers/ Rear: Dual 200 mm disc brakes with hydraulic twin-piston calipers
L x W x H 91.5 x 47.2 x 57.2 in. (2323 x 1200 x 1454 mm)
Wheel Base 59 in. (1500 mm)
Ground Clearance 11 in. (280 mm)
Estimated Dry Weight* 948 lb (430 kg)
Payload Capacity 280 kg
Rack Capacity Front:110 lb (50 kg) / Rear: 220 lb (100 kg)
Towing Capacity 1786 lb (810 kg)
Fuel Capacity 23 L
Seat Height 37.4 in. (950 mm)
Battery 12 V / 20 Ah
Gauge 5” Digital Dispaly
Power Steering N/A
Lighting LED headlights and taillights
Winch N/A
Seat 2 Standard
Protection N/A
Manufacturer Limited Warranty 2- Year Limited Factory Warranty
TRAILHUNTER 550 PRO
Overview ENGINE & TRANSMISSION CHASSIS & HANDLING DIMENSIONS & CAPABILITIES FEATURES WARRANTY
X TRAILHUNTER 550 PRO
Overview ENGINE & TRANSMISSION CHASSIS & HANDLING DIMENSIONS & CAPABILITIES FEATURES WARRANTY
TRAILHUNTER 550 PRO
TRAILHUNTER 550 PRO VIEW DETAILED PARAMETER CONFIGURATION
  • 650 cc, single cylinder,
    DOHC, liquid cooled
  • Ground Clearance
    280 mm
  • Passenger Allowed
    Options: 1-Seat
  • Selectable 2WD/4WD
    with front differential lock
  • DOWNLOAD SPEC SHEET
Type single cylinder, DOHC, liquid cooled
Displacement 650 cc
Max Power / Torque 46 HP / 50 N·m
Fuel Supply BOSCH EFI
Transmission Changxing CVT L / H / N / R / P
Drivetrain Selectable 2WD/4WD with front differential lock
Front Suspension Double A-arm 9.45 in. (240 mm) travel
Rear Suspension Double A-arm 9.84 in. (250 mm) travel
Shock Absorber oil shock absorber
Front Tires 25 x 8 x 12 in.
Rear Tires 25 x 10 x 12 in.
Wheels 12 in. Aluminum
Brake Front: Dual 200 mm disc brakes with hydraulic twin-piston calipers/ Rear: Dual 200 mm disc brakes with hydraulic twin-piston calipers
L x W x H 84.4 x 47.2 x 57.2 in. (2143 x 1200 x 1454 mm)
Wheel Base 51.9 in. (1320 mm)
Ground Clearance 11 in. (280 mm)
Estimated Dry Weight* 882 lb (400 kg)
Payload Capacity 280 kg
Rack Capacity Front:110 lb (50 kg) / Rear: 220 lb (100 kg)
Towing Capacity 1786 lb (810 kg)
Fuel Capacity 23 L
Seat Height 37.4 in. (950 mm)
Battery 12 V / 20 Ah
Gauge 5” Digital Dispaly
Power Steering EPS
Lighting LED headlights and taillights
Winch N/A
Seat 1 Standard
Protection N/A
Manufacturer Limited Warranty 2- Year Limited Factory Warranty
TRAILHUNTER TOURING 550 PRO
Overview ENGINE & TRANSMISSION CHASSIS & HANDLING DIMENSIONS & CAPABILITIES FEATURES WARRANTY
X TRAILHUNTER TOURING 550 PRO
Overview ENGINE & TRANSMISSION CHASSIS & HANDLING DIMENSIONS & CAPABILITIES FEATURES WARRANTY
TRAILHUNTER TOURING 550 PRO
TRAILHUNTER TOURING 550 PRO VIEW DETAILED PARAMETER CONFIGURATION
  • 650 cc, single cylinder,
    DOHC, liquid cooled
  • Ground Clearance
    280 mm
  • Passenger Allowed
    Options: 2-Seat
  • Selectable 2WD/4WD
    with front differential lock
  • DOWNLOAD SPEC SHEET
Type single cylinder, DOHC, liquid cooled
Displacement 650 cc
Max Power / Torque 46 HP / 50 N·m
Fuel Supply BOSCH EFI
Transmission Changxing CVT L / H / N / R / P
Drivetrain Selectable 2WD/4WD with front differential lock
Front Suspension Double A-arm 9.45 in. (240 mm) travel
Rear Suspension Double A-arm 9.84 in. (250 mm) travel
Shock Absorber oil shock absorber
Front Tires 25 x 8 x 12 in.
Rear Tires 25 x 10 x 12 in.
Wheels 12 in. Aluminum
Brake Front: Dual 200 mm disc brakes with hydraulic twin-piston calipers/ Rear: Dual 200 mm disc brakes with hydraulic twin-piston calipers
L x W x H 91.5 x 47.2 x 57.2 in. (2323 x 1200 x 1454 mm)
Wheel Base 59 in. (1500 mm)
Ground Clearance 11 in. (280 mm)
Estimated Dry Weight* 947 lb (430 kg)
Payload Capacity 280 kg
Rack Capacity Front:110 lb (50 kg) / Rear: 220 lb (100 kg)
Towing Capacity 1786 lb (810 kg)
Fuel Capacity 23 L
Seat Height 37.4 in. (950 mm)
Battery 12 V / 20 Ah
Gauge 5” Digital Dispaly
Power Steering EPS
Lighting LED headlights and taillights
Winch N/A
Seat 2 Standard
Protection N/A
Manufacturer Limited Warranty 2- Year Limited Factory Warranty
